46' Winninghoff

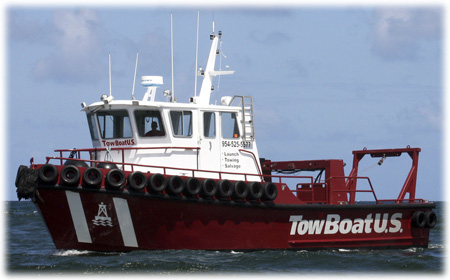

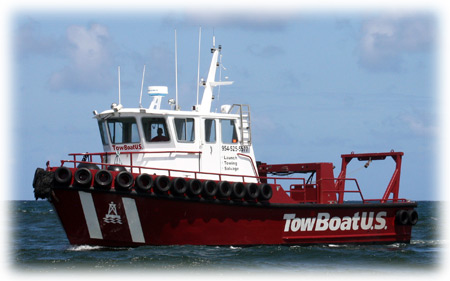

TowBoatU.S. Launch
Click to Enlarge Picture Click to Enlarge Picture Click to Enlarge Picture

Specifications

Classification:
•

6 Passengers

•
Berthing for 4 Passengers

Built:
•
1994 Winninghoff, Rowley, MA
•
Repower Date: 2008
•
Aluminum Construction

Dimensions:
•
Overall Length 46’, Beam 15’, Draft 3’10”
•
Split Level Deck:
  Upper Deck 9' x 14'
  Lower Deck 11' x 13'

Mooring Systems:
•
Danforth Anchor
•
Anchor Windless

Deck Winch:
•
Pulling Capacity: 2,200 lbs
•
Wire Capacity: 200 ft of 3/8" Wire

Oceanographic Winch:
•
Manufacturer: InterOcean
•
Pulling Capacity: 1,000 lbs

Horizontal Capstan:
•
Pulling Capacity: 5,000 lbs

A-Frame:
•
Stationary
•
Max Safe Working Load: 1,000 lbs

Air Conditioning / Heating:
•
Number of units: 2
•
Central AC

Machinery:
•
Main Engines: (2) John Deere 6081 375 Hp
•
Generators: (1) Northern Lights 8KW
•
Auxiliary Engine: Volvo 200 Hp Diesel
•
Hydraulic System: Dual control 100 GPM capability with deck mount quick disconnects
•
Auxiliary Engine Driven Fire Pump
•
Deck tie down points

Capacities:
•
Fuel Oil: 900 Gallons Total
  Main Tanks: 400 Gallons
  (2) Auxiliary Tanks: 250 Gallons each
•
Hydraulic Oil: 200 gallons
•
Potable Water: 40 Gallons
•
Cargo: 4 Long Tons

Gally:
•
Microwave
•
Refrigerator
•
Coffee Maker
•
Seating for Four

Electronics / Navigation:
•
VHF: (2) Standard Horizon VHF Radios
•
Hailer: (1) Raytheon 30 Watt Hailer
•
Fathometer: Furuno High Frequency Depth Sounder
•
Radar: (1) Furuno Radar
•
Standard Horizon GPS Plotter
•
Digital Compass
•
SIMRAD Robertson AP-11 Autopilot
•
High frequency private communications system

Equipment:
•
Lifting Straps
•
Cargo Nets
•
Electric Pumps
•
(3) Perko Searchlights
•
Underwater Epoxy
•
A compliment of salvage and dive equipment available upon request

Fuel Consumption:
•
Station Keeping - 10 GPH
•
Cruise (14 Knots) - 20 GPH
•
At Anchor - 4 GPH

Range:
•
400 Miles @ Cruise Speed



Photos
Click on the thumbnails to view the full sized photo.

Wheel House


Galley

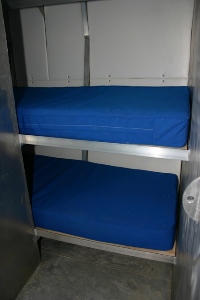

Passenger Berthing
