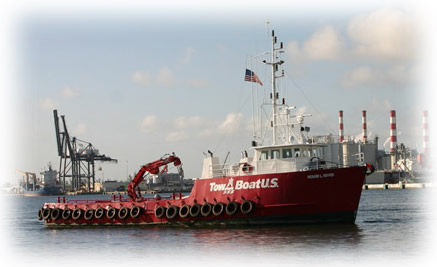

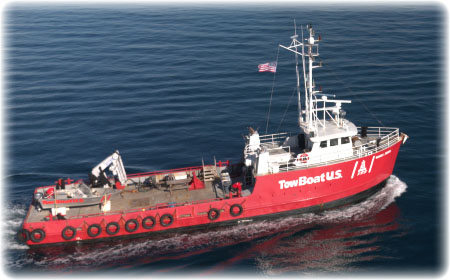

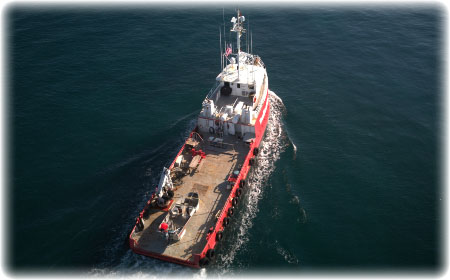

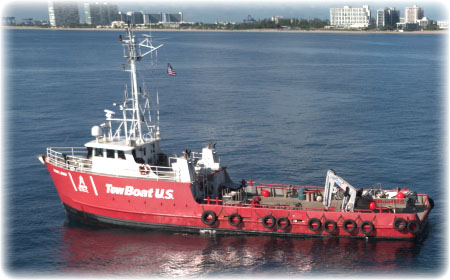

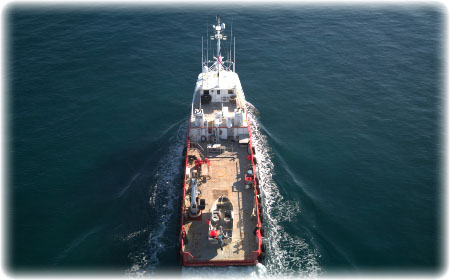

Richard L. Becker

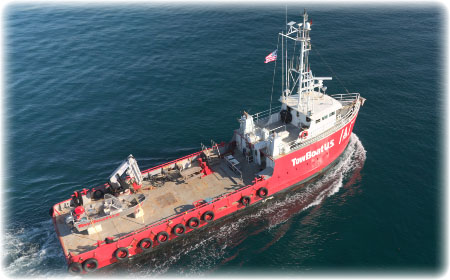

96' Graham Work Boat

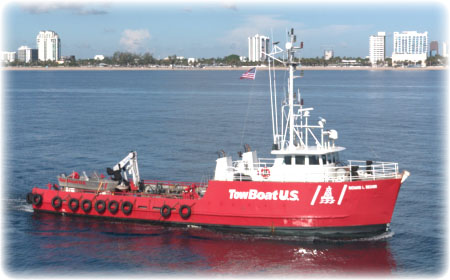

Richard L. Becker South Florida Charter Boat

Specifications

Classification:
  • Offshore Supply Vessel - Available for Charter by the hour or day
  • T Boat designation as of 9/01/2004
  • COI Certification:
    42 Passengers on Domestic Voyages
    12 Passengers on Intl Voyages
  • ABS Load Line Certificated
  • Work Boat available for charter in South Florida
Built:
  • 1976 Graham, Bayou La Batre, LA
  • Refit Date: 2008 / 2013 / 2018
Dimensions:
  • Overall Length 96', Beam 24', Draft 8'4", Air Draft 52' 6"
  • Main Cargo deck 50' x 22'
Mooring Systems:
  • Danforth Anchor
  • 50,000 lb Line Pull Anchor Winch
Deck Winch:
  • Manufacturer: Lantec
  • Barrel: 24"
  • Flange: 40"
  • Length: 36"
  • Pulling Capacity: 25,000 lbs
  • Wire Capacity: 5,200 ft of 1/2" Wire
  • Wire Currenlty on Winch:
    600 ft of 20mm Hylift Galvanized
  • Weight Empty: 5,000 lbs
  • Weight Loaded: 5,785 lbs
Oceanographic Winch:
  • Manufacturer: InterOcean
  • Pulling Capacity: 1,000 lbs
  • Useful for a variety of vessel charter applications
Horizontal Capstan:
  • Pulling Capacity: 5,000 lbs
Deck Crane:
  • Manufacturer: Effer / Model: 44 N-55 with winch
  • Capacities:
    9,080 lbs at 5 ft
    4,215 lbs at 41 ft
  • Winch Cable:
    210 ft of 5/8" Non-Rotating Wire Rope
  • Versatile equipment for use by our charter customers
A-Frame:
  • Pin Height: 16'
  • Throat: 12'
  • Max Safe Working Load: 16,576 lbs
  • Weight: 11,000 lbs
  • Charter customers find this piece of gear very useful
Accommodations:
  • Staterooms:
    - 2 crew with 5 bunks
    - 2 passenger, 1 with 4 berths, 1 with 8 berths
    • Useful for charters with Male and Female passengers
  • Full Galley with Barbecue Grill
  • Lounge Area: TV, Stereo, VCR, Satellite TV and Sirius Radio
  • WiFi Internet Access via 3G/4G Cellular Network
  • VSAT Satellite Internet
    1
  • Comfortable and clean accommodations for charter guests
Air Conditioning / Heating:
  • Number of units: Keel cooled (2)
  • Central AC
Capacities:
  • Fuel Oil: 18,743 Gallons
  • Lube Oil: 150 Gallons
  • Hydraulic Oil: 100 gallons
  • Potable Water: 1,056 Gallons with 1000 Gallon per day water maker
  • Ballast: 27,293 gallons
  • Cargo: 38 Long Tons
  • Deck will accommodate 30 pallets
  • Good endurance compared to other South Florida Charter Vessels
Machinery:
  • Main Engines: (2) 12V71N Detroit
  • Generators: (2) 371N Detroit 30KW
  • Hydraulic Pump: 471N Detroit
  • Auxiliary Hydraulic ports on work deck 40-50 GPM at 1800-2200 PSI
  • Welder: AC/DC 208V and oxygen-acetylene torch set
  • Nato Grid to secure deck loads and equipment
  • Aft and Wheel House bulkhead pass-throughs
Electronics / Navigation:
  • SSB: (1) Stevens SEA 222, (1) Stevens SEA 235 with Necoder
  • VHF: (2) Furuno FM8900S Class-A DSC
  • AIS: (1) Furuno FA150 Class-A AIS Unit
  • Hailer: (1) Stevens Loud Hailer
  • Fathometer: Furuno Dual frequency 50/200 KHz
  • Radar: (2) Furuno 810D 10 KW, 72/98 Mile range
  • Autopilot: Robertson AP45
  • GPS: (2) Northstar 951X
  • Dell CPU with Nobeltec Navigation software
  • 406 MHz EPIRB
  • Sat. Phone: Nera Fleet 77 Global internet w/ wifi access fax/phone
  • Weatherfax
  • Panasonic PBX system with TDMA and GSM cell service also land line capabilities
Equipment:
  • Offshore Marine Towing has a full compliment of salvage / dive equipment stored in our Pompano Beach warehouse and our mobile salvage response trailer. This inventory includes a variety of gas, diesel and electric pumps, lift bags, straps, lines, patching materials, underwater epoxy and more. This equipment can be put into service on the Richard L. Becker as needed.
  • 18' Kropf Marine Tender with 60 HP 4-Stroke Yamaha outboard engine, and tow bitt (Weight: 2,400 lbs)
  • If you have special equipment needs for your charter, please don't hesitate to ask. We work hard to accommodate our work boat charter customers
Fuel Consumption:
  • Station Keeping - 23 GPH
  • 1400 RPM Cruise (10 Knots) - 34 GPH
  • At Anchor - 13 GPH
  • Fuel efficient compared to other vessels available for charter
Range:
  • 4,675 Miles

Photos
Click on the thumbnails to view the full sized photo.

Workboat Wheel House
Richard L. Becker Workboat - Wheel House
Richard L. Becker Charter Boat - Wheel House
Spacious and well equipped workboat galley
Richard L. Becker - Galley South Florida
Richard L. Becker - Charter Boat Galley
Workboat Captain's Quarters
Richard L. Becker Charter - Captain's Quarters
Richard L. Becker Florida - Captain's Quarters
Workboat Crew's Quarters
Richard L. Becker Workboat - Captain's Quarters
Crew's Mess
Richard L. Becker Workboat - Crew's Mess
Passenger's Quarters - Up to 12 charter passengers
Richard L. Becker Workboat - Passenger's Quarters
Richard L. Becker Charter Boat - Passenger's Quarters

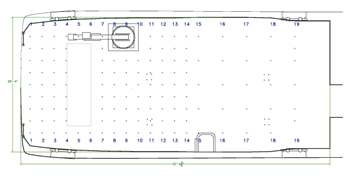

Drawings & Diagrams
Click on the thumbnails to view the full sized image.

Click Here to Download the CAD Files (.plt)

Richard L. Becker Workboat - Diagram
Richard L. Becker Charter Boat - Diagram
Richard L. Becker Workboat - Diagram
Richard L. Becker Charter Boat - Diagram
Richard L. Becker Workboat - Diagram
Richard L. Becker Charter Boat - Diagram

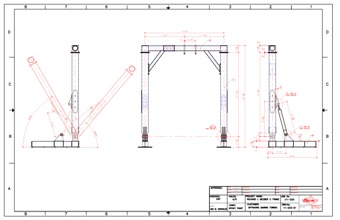

A-Frame Drawings

Richard L. Becker Charter Boat - Diagram

Click Here to Download the AutoCAD File (.dwg)

A-Frame Drawings

Richard L. Becker Workboat - Diagram

Click Here to Download the AutoCAD File (.dwg)

USBL Pole Flange Drawing

Richard L. Becker Workboat - FLange Dimensions
Certificates & Documents
Click on the thumbnails to view the pdf document.
United States Coast Guard
Certificate of Inspection
United States Coast Guard
Stability Letter
International Load Line Certificate
National Cargo Bureau
Certificate of Test
National Cargo Bureau
A-Frame & Crane Proof Test Report
